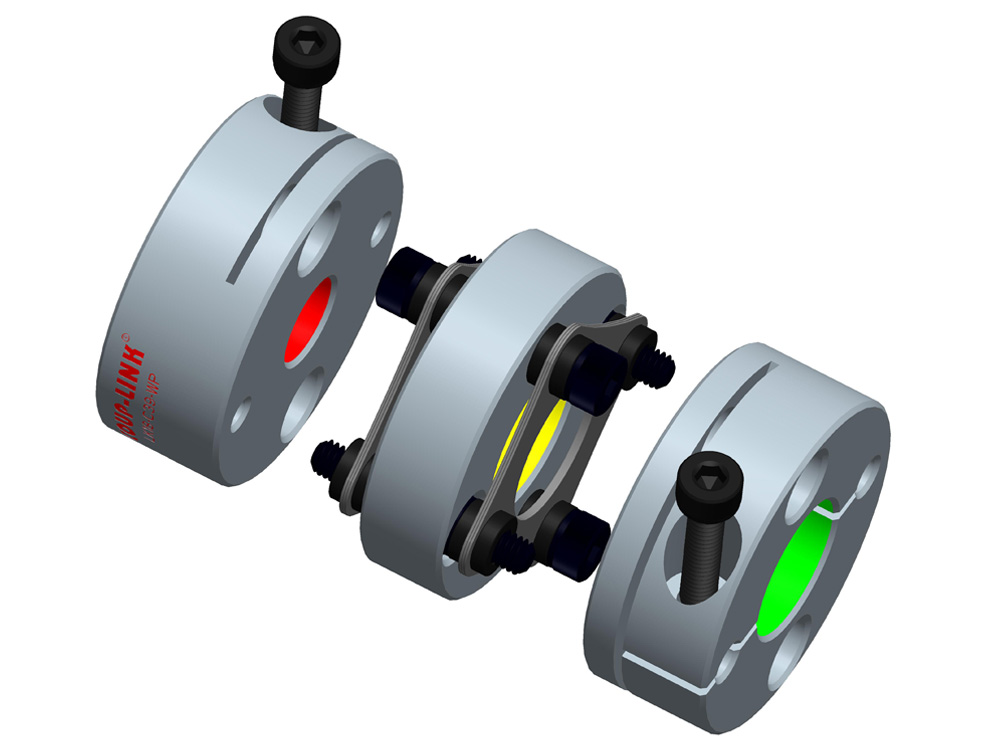

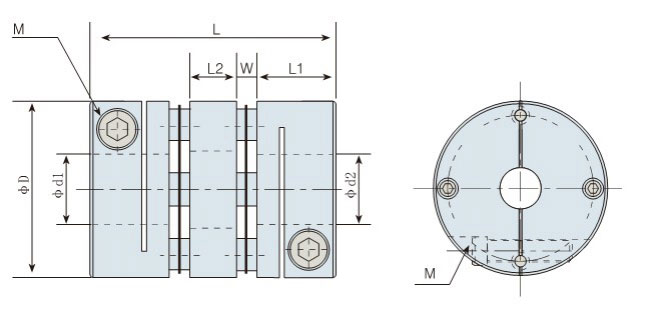

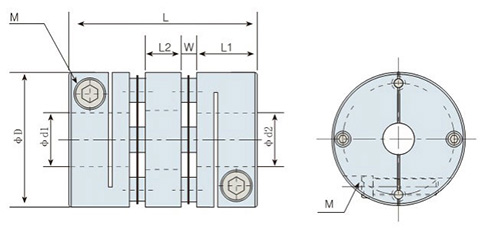

Modell | φd1φd2 Max. Bohrungsdurchmesser | φD | L | W | L1 | L2 | M | Anzugsdrehmoment ( N.M ) |
LK18-C26-WP | 10 | 26 | 35 | 2.8 | 11.35 | 7.0 | M3 | 1.2 |
LK18-C34-WP | 14 | 34 | 45 | 3.6 | 14.5 | 8.8 | M4 | 2.5 |
LK18-C39-WP | 16 | 39 | 49 | 4.5 | 15.0 | 10.0 | M4 | 2.5 |
LK18-C44-WP | 19 | 44 | 50 | 4.8 | 15.0 | 10.4 | M4 | 2.5 |
LK18-C56-WP | 24 | 56 | 63 | 5.5 | 20.0 | 12.0 | M5 | 5 |
LK18-C68-WP | 35 | 68 | 74 | 6.0 | 24.0 | 14.0 | M6 | 8 |
LK18-C82-WP | 40 | 82 | 98 | 8.0 | 30.0 | 22.0 | M8 | 20 |
LK18-C94-WP | 40 | 94 | 98 | 8.5 | 30.0 | 21.0 | M10 | 40 |
LK18-C104-WP | 45 | 104 | 102 | 10.0 | 30.0 | 22.0 | M10 | 40 |
Modell | Nenndrehmoment ( N.m ) | Max. Drehmoment ( N.m ) | Max.Drehfrequenz ( rpm ) | Trägheitsmoment ( Kg.m2 ) | Statische Drehsteifigkeit ( N.m / rad ) | Fehler der Exzentrizität ( mm ) | Max. Winkelversatz ( °) | Max. Axialversatz ( mm ) | Gewicht ( g ) |
LK18-C26-WP | 1.4 | 2.8 | 10000 | 3.13×10-6 | 950 | 0.15 | 1.5 | ±0.4 | 37.1 |
LK18-C34-WP | 2.8 | 5.6 | 10000 | 1.13×10-5 | 1960 | 0.18 | 1.5 | ±0.4 | 78.0 |
LK18-C39-WP | 5.8 | 11.6 | 10000 | 2.21×10-5 | 4500 | 0.25 | 1.5 | ±0.5 | 116.2 |
LK18-C44-WP | 8.7 | 17.4 | 10000 | 3.56×10-5 | 5100 | 0.25 | 1.5 | ±0.7 | 147.3 |
LK18-C56-WP | 25 | 50 | 10000 | 1.18×10-4 | 10500 | 0.3 | 1.5 | ±0.8 | 301.9 |
LK18-C68-WP | 55 | 110 | 10000 | 2.82×10-4 | 18500 | 0.35 | 1.5 | ±0.9 | 488.4 |
LK18-C82-WP | 80 | 160 | 10000 | 8.29×10-4 | 21800 | 0.52 | 1.5 | ±1.0 | 985.8 |
LK18-C94-WP | 185 | 370 | 10000 | 1.51×10-3 | 84500 | 0.55 | 1.5 | ±1.3 | 1370.1 |
LK18-C104-WP | 255 | 510 | 10000 | 2.34×10-3 | 125500 | 0.55 | 1.5 | ±1.5 | 1734.0 |
