- LK11-1 Einfachgelenk Lamellenkupplung - Passfederverbindung

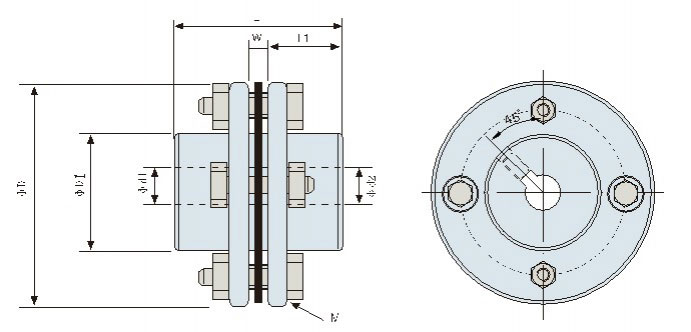

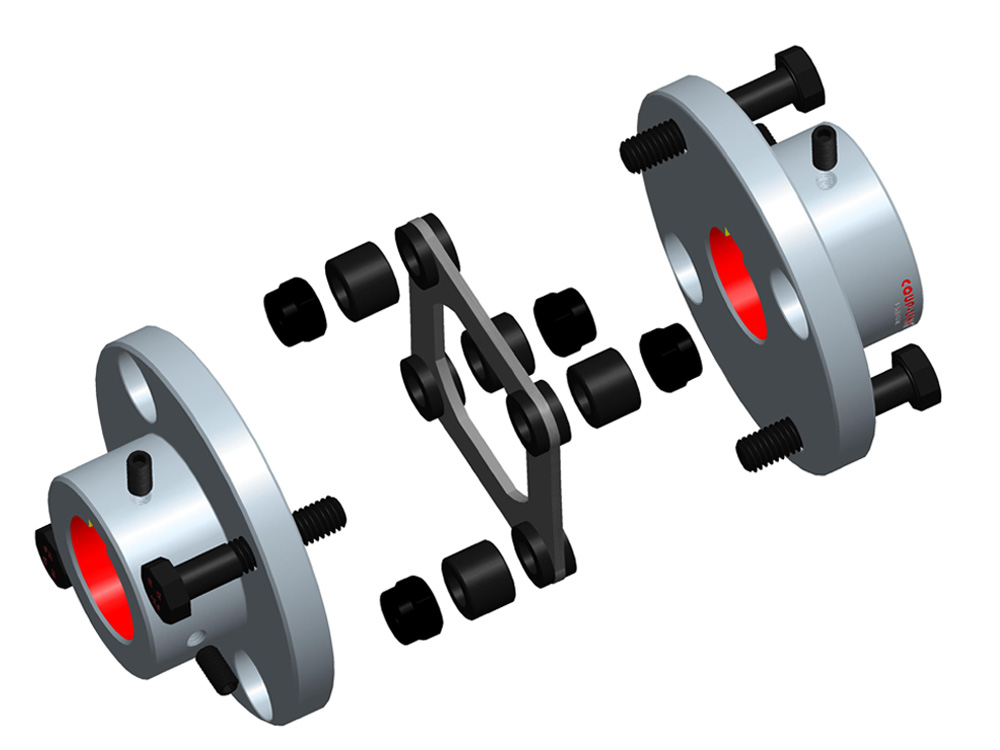

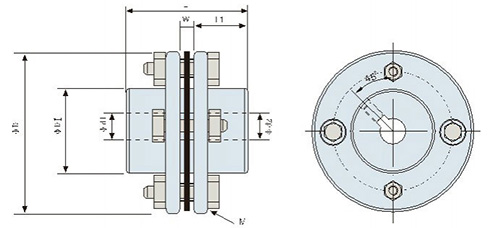

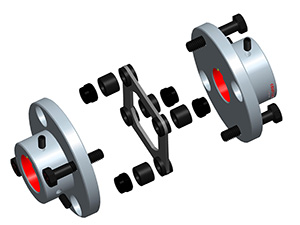

LK11-1 Einfachgelenk Lamellenkupplung - Passfederverbindung
Hinweis: Informieren Sie uns über das Modell und φd1φd2 ihres gewünschten Produktes bitte.
| Modell | φd1φd2 Max. Bohrungsdurchmesser | φD | φD1 | L | L1 | W | M |
| LK11-56K | 20 | 56 | 32 | 45 | 20 | 5.0 | M5 |
| LK11-62K | 22 | 62 | 36 | 56 | 25 | 6 | M6 |
| LK11-68K | ≤22 | 68 | 36 | 56 | 25 | 6 | M6 |
| ＞22~25 | 40 | ||||||
| LK11-82K | ≤28 | 82 | 45 | 66 | 29 | 8 | M8 |
| ＞28~35 | 54 | ||||||
| LK11-94K | 38 | 94 | 58 | 68.5 | 30 | 8.5 | M8 |
| LK11-104K | 42 | 104 | 65 | 80 | 35 | 10 | M8 |
| LK11-115K | 45 | 115 | 67 | 91 | 39.5 | 12 | M10 |
| LK11-126K | 50 | 126 | 78 | 92.5 | 40 | 12.5 | M10 |
| LK11-144K | 60 | 144 | 82 | 103 | 45 | 13 | M12 |
| LK11-152K | 75 | 152 | 100 | 103.5 | 45 | 13.5 | M12 |
| LK11-178K | 80 | 178 | 118 | 124 | 55 | 14 | M12 |
| LK11-190K | 85 | 190 | 126 | 145 | 65 | 15 | M14 |
| LK11-210K | 90 | 210 | 140 | 165 | 75 | 15 | M16 |
| LK11-225K | 100 | 225 | 144 | 200 | 90 | 20 | M16 |
| LK11-262K | 115 | 262 | 166 | 223 | 100 | 23 | M20 |
| Modell | Nenndrehmoment ( N.m ) | Max.Drehmoment ( N.m ) | Max.Drehfrequenz ( rpm ) | Trägheitsmoment( Kg.m2 ) | Statische Drehsteifigkeit ( N.m / rad ) | Fehler der Exzentrizität( mm ) | Max. Winkel ( °) | Max. Axialversatz ( mm ) | Gewicht ( g ) |
| LK11-56K | 25 | 50 | 20000 | 1.30×10-4 | 15×103 | 0.02 | 1 | ±0.6 | 330 |
| LK11-62K | 40 | 80 | 18000 | 2.50×10-4 | 25×103 | 0.02 | 1 | ±0.7 | 530 |
| LK11-68K | 55 | 110 | 15000 | 3.44×10-4 | 28×103 | 0.02 | 1 | ±0.7 | 590 |
| LK11-82K | 80 | 160 | 14000 | 8.41×10-4 | 81×103 | 0.02 | 1 | ±1.1 | 1000 |
| LK11-94K | 170 | 340 | 11000 | 1.64×10-3 | 165×103 | 0.02 | 1 | ±1.3 | 1490 |
| LK11-104K | 240 | 480 | 9800 | 2.9×10-3 | 240×103 | 0.02 | 1 | ±1.5 | 2140 |
| LK11-115K | 330 | 660 | 8700 | 4.68×10-3 | 310×103 | 0.02 | 1 | ±1.6 | 2830 |
| LK11-126K | 420 | 840 | 8000 | 7.53×10-3 | 410×103 | 0.02 | 1 | ±1.6 | 3790 |
| LK11-144K | 700 | 1400 | 6800 | 1.38×10-2 | 760×103 | 0.02 | 1 | ±1.8 | 5320 |
| LK11-152K | 800 | 1600 | 5800 | 1.59×10-2 | 836×103 | 0.03 | 1 | ±1.8 | 5520 |
| LK11-178K | 1300 | 2600 | 5100 | 4.05×10-2 | 1065×103 | 0.03 | 1 | ±1.9 | 10230 |
| LK11-190K | 2000 | 4000 | 4700 | 5.95×10-2 | 1150×103 | 0.03 | 1 | ±1.9 | 13180 |
| LK11-210K | 3900 | 7600 | 4300 | 1.04×10-1 | 1520×103 | 0.03 | 1 | ±1.9 | 18940 |
| LK11-225K | 4900 | 9800 | 4000 | 1.40×10-1 | 1930×103 | 0.03 | 1 | ±1.9 | 22070 |
| LK11-262K | 7900 | 15800 | 3400 | 2.91×10-1 | 3500×103 | 0.03 | 1 | ±1.9 | 33940 |
